Function Parameters:
| Thickness: |
top 2.0mm + body 1.5mm |
| Work Voltage: |
AC110~220V±10V |
| Working Environment Temperature: |
-35℃～75℃ |
| Relative Humidity: |
0～90% (No condensation) |
| Communication Interface: |
RS232/RS485 serial port |
| Communication Protocol: |
MODBUS protocol |
| Working Speed of the Gate: |
≤30 persons/min |
| Swing Arm Material: |
10MM Acrylic/Reinforced glass |
| Infrared Sensors: |
6 pairs; 10 pairs can be selected |
Basic Functions:
●Alarm Function: Sound and light alarm function.
●Anti-interference: To prevent the gate abnormal caused by electromagnetic and other external causes.
●Passage Mode Setting: Unidirectional passage, bidirectional passage and free passage can be set through the main control board keys.
●Anti-tailgating: To prevent the unpermitted situation of passing too many people at once.
● Anti-clamp Function: When the brake is in the process of closing, the brake will stop closing after detecting the anti-clamp signal.
●Self-reset. Pass right will be canceled if people do not go through within a set time, the default time is 10s, and the passage time can be set by switch.
●Access Control: The external port can be connected to a variety of biometric identification devices.
●The gate opens after power failure.
●Fault Detection: The control board can support fault type detection, fault cause analysis, and fault troubleshooting.
●Passing Indicator: Traffic status indicator light; the alarm function of overstay time in the channel can be set.
Our Products:
When the swing gate is pushed by external force, it will automatically enable the intelligent counter-push function to withstand the impact force within the safety range, and start the alarm and automatic reset, which reduces the possibility of mechanical damage.
High security: Pendulum gates have sound and light alarms, including illegal entry, tailgating alarms and anti-collision functions to ensure channel security.
As an intelligent door control device, swing gate has been widely used in public places and enterprises and institutions. The convenience, safety and aesthetics of swing gates are favoured by people. In use, attention needs to be paid to the installation, maintenance and repair of the equipment to ensure the normal operation of the equipment and the safety of personnel.
Product Tags:
|
|

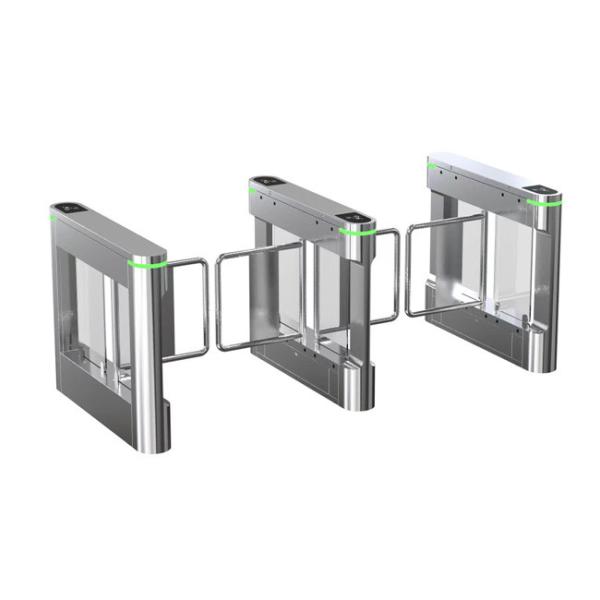

Anti Collision Swing Barrier Gate Turnstile for Government Halls/Sports Venues/Convention Images
|
