Speed Gate Turnstile with 10mm Acrylic Arm For Hospitals / Hotels
Product Description
1. IRONMAN Intelligent series revolving door is well designed and excellent performance, made of innovative technology and high quality materials, with unique features, can be widely used in security, commercial and industrial fields, to meet the various needs of customers.
2. Electronic control using DC motor drive, stable and reliable, low failure rate. Ultra-high brightness traffic indication function: the direction indication adopts ultra-high brightness LED light design, the indication is more eye-catching;
3. System integration: compatible with face, thermal, RFID/fingerprint/QR or barcode/ESD access control system, easy to manage.
4. Acceptable: Custom OEM/ODM service, such as size, shape, etc.
5.Made of Aluminum alloy oxidatio.
Function Parameters:
| Thickness: | top 8mm + body 2mm |
| Work Voltage: | AC110~220V±10V |
| Working Environment Temperature: | -35℃～75℃ |
| Relative Humidity: | 0～90% (No condensation) |
| Communication Interface: | RS232/RS485 serial port |
| Communication Protocol: | MODBUS protocol |
| Working Speed of the Gate: | ≤30 persons/min |
| Swing Arm Material: | 10MM Acrylic |
| Infrared Sensors: | 6 pairs; 10 pairs can be selected |
Basic Functions:
●Alarm Function: Sound and light alarm function.
●Anti-interference: To prevent the gate abnormal caused by electromagnetic and other external causes.
●Passage Mode Setting: Unidirectional passage, bidirectional passage and free passage can be set through the main control board keys.
●Anti-tailgating: To prevent the unpermitted situation of passing too many people at once.
● Anti-clamp Function: When the brake is in the process of closing, the brake will stop closing after detecting the anti-clamp signal.
●Self-reset. Pass right will be canceled if people do not go through within a set time, the default time is 10s, and the passage time can be set by switch.
●Access Control: The external port can be connected to a variety of biometric identification devices.
●The gate opens after power failure.
●Fault Detection: The control board can support fault type detection, fault cause analysis, and fault troubleshooting.
●Passing Indicator: Traffic status indicator light; the alarm function of overstay time in the channel can be set.

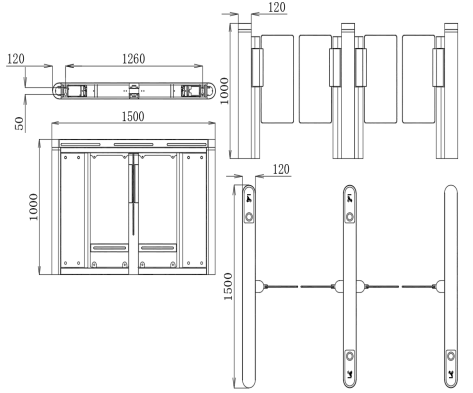

Dimension Drawing

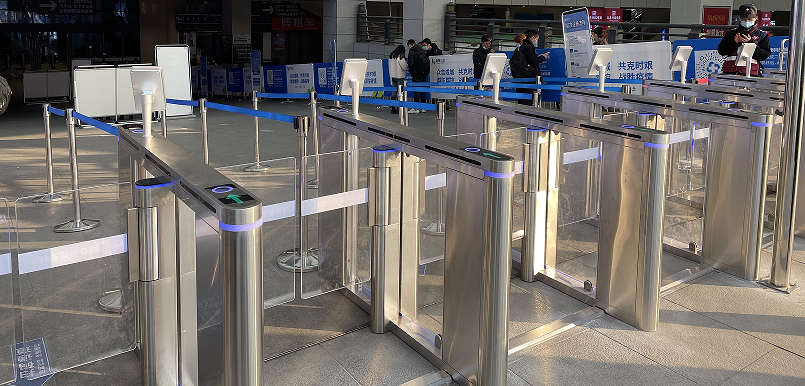

Projects
TJ-ST601 speed gate turnstile is a sophisticated commericial design which is designed to be used in office buildings. It provides quick and efficient passage speed of 30~40 persons/min, and has excellent security and safety features. The turnstile is also equipped with advanced access control technology, which allows for quick and efficient access control.
This turnstile is designed to withstand humidity up to 90%, and has a communication interface of RS485. It is an ideal solution for any security or safety requirement in the office building.
Packing and Shipping:
Packaging and Shipping for Speed Gate Turnstile:
- The product will be placed in a sealed cardboard box and secured with bubble wrap.
- The box will be labeled "Speed Gate Turnstile" on the outside.
- The box will be shipped via a reliable carrier.
- The customer will be provided with a tracking number for their package.
- The product will be shipped in a timely manner to ensure it arrives safe and secure.
